BN-G

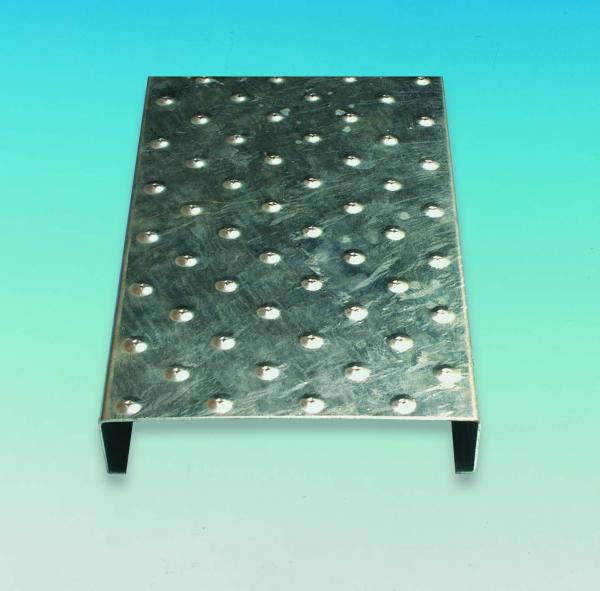

BN-G sheet metal profile can be used where no openings are required and where safe movement in regular footwear must be ensured.

material	sheet thicknesses
steel hot-dip galvanized steel electro-galvanized stainless steel aluminium	2 and 2.5 mm on request 1.5 and 2 mm 2 and 2.5 mm

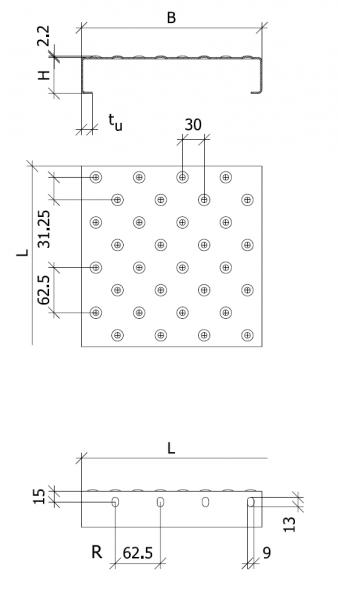

grid spacing R production lengths L widths B heights H edge fold tu	62.5 mm n x R, max. 6000 mm 150, 200, 250, 300 mm 30, 50, 75, 100 mm approx. 10 mm
