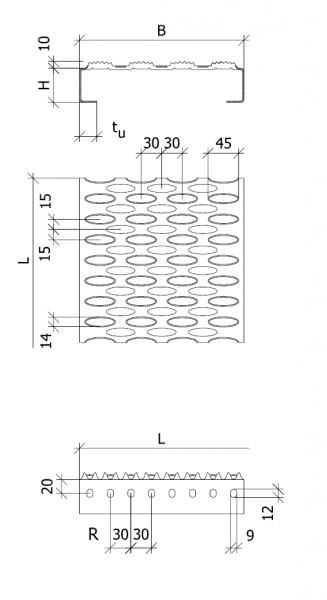

BZ

BZ perforated metal plank offers high adhesion properties thanks to its extremely shaped surface structure. It is recommended for areas where lubricants are used extensively.

material	sheet thicknesses
steel hot-dip galvanized steel electro-galvanized stainless steel aluminium	2 and 2.5 mm on request 1.5 and 2 mm 2 and 2.5 mm
grid spacing R production lengths L widths B heights H edge fold tu	30 mm n x R, max. 6000 mm 120, 180, 240, 300 360, 420, 480 mm 40, 50, 75 mm approx. 25 mm
