Shelf Gratings

Home » Products » Shelf Gratings

Racking gratings

Floor gratings are also suitable as shelves for all types of racking systems, especially for industrial and commercial use. Thanks to their design and versatility, they provide a reliable and safe solution for storing various kinds of materials.

Gratings are suitable for:

  • Pallet racking
  • Cantilever racking
  • Other types of racking
  • Mezzanines and walkways in racking systems

Advantages of racking gratings

Racking gratings vynikají vysokou stabilitou díky široké variabilitě výšky nosných pásů i rozteče ok, což umožňuje jejich optimalizaci pro různé typy zatížení dle skladovaného materiálu.

Other key advantages include:

  • Light permeability – allows better lighting of warehouse areas and checking rack occupancy from below
  • Water permeability – an ideal solution for buildings with sprinkler systems
  • Corrosion resistance – supplied as standard with a hot-dip galvanized finish, which
    ensures corrosion resistance even in outdoor environments
  • Fast and easy installation – especially in pallet racking, gratings are equipped with anti-shift features and usually do not require additional fastening material

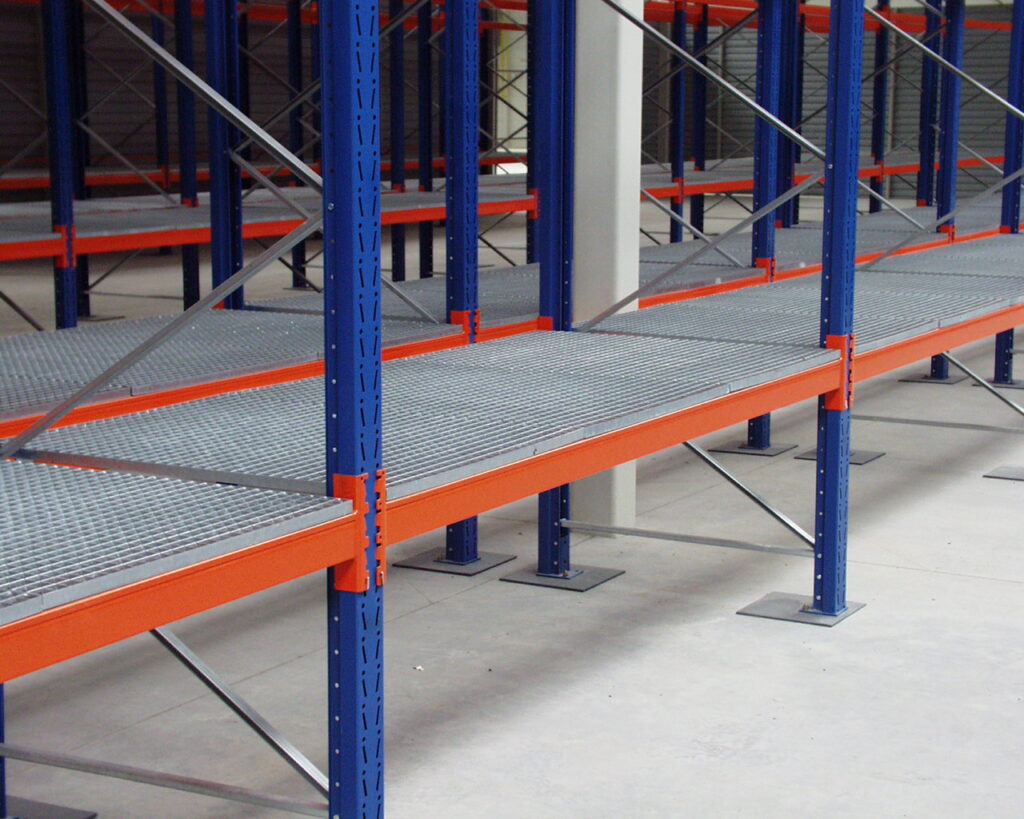

Pallet racking

For pallet racking, pressed gratings are the most suitable; they are designed according to the required load and mesh size. Their design usually ensures secure fixing directly in the rack without the need for additional anchoring.

Ways of securing gratings in pallet racking

Gratings placed on beams

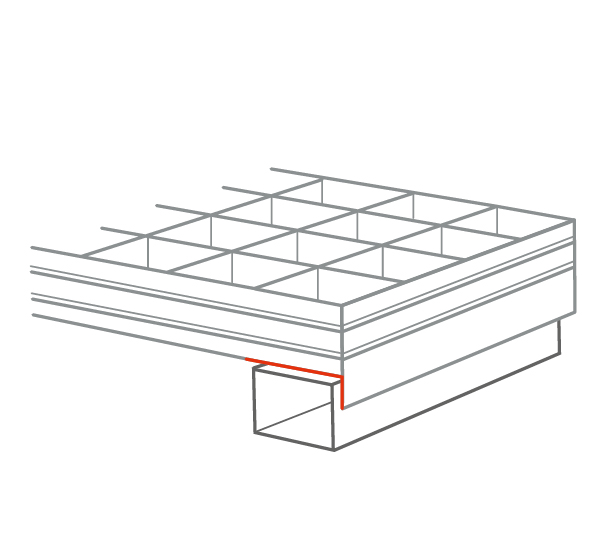

Securing the grating with an overhanging flange
Securing the grating with an overhanging flange
Securing with an overhanging flange and a notched flange

Gratings inserted between beams

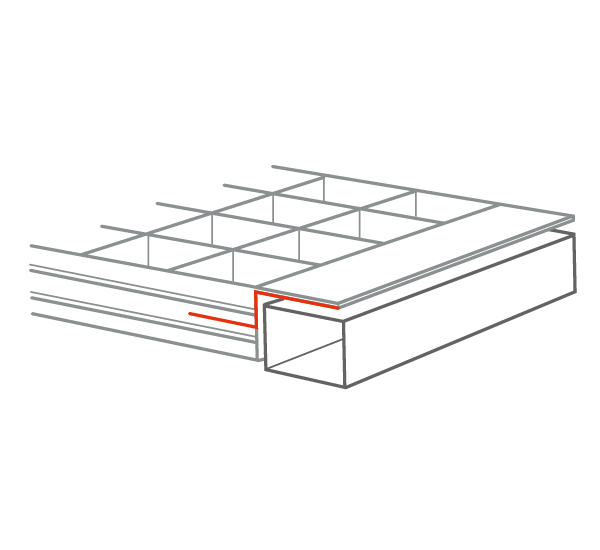

Securing the grating using
an angle bracket or a Z-profile

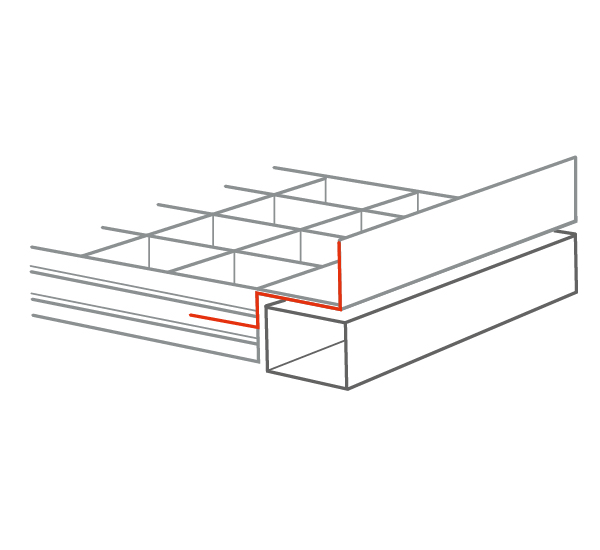

Securing the grating using
a Z-profile with a stop that
prevents the stored goods from shifting

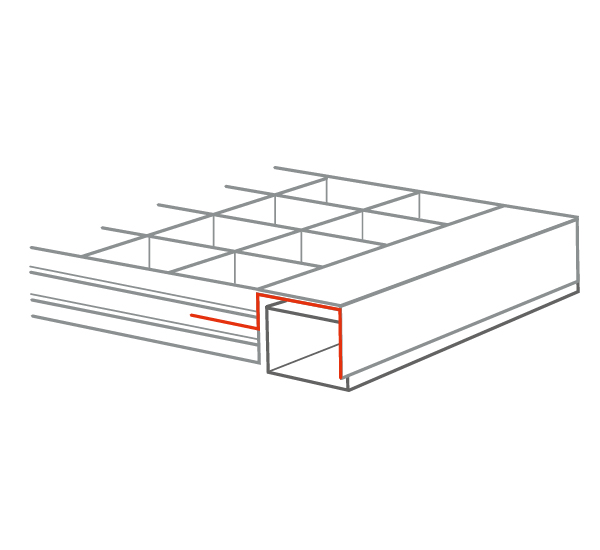

Securing the grating with a ZU profile. Additional securing of the grating on the beam

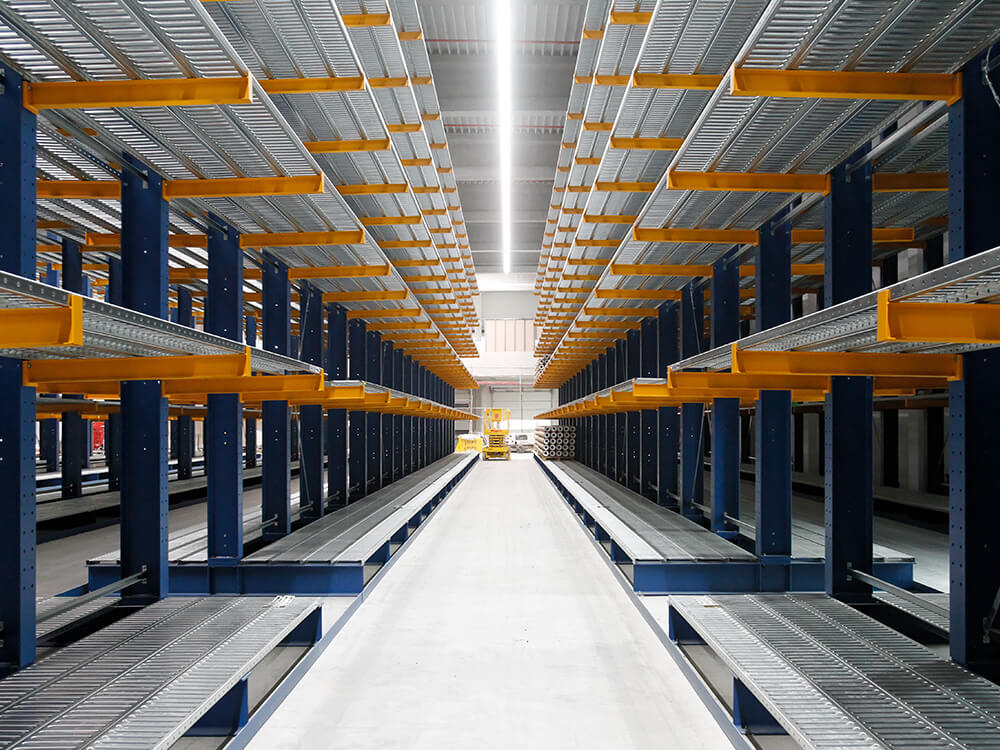

Cantilever racking

For cantilever racking, we offer gratings from a wide range of pressed and resistance-welded variants that can be adapted to specific load capacity and dimensional requirements.
Sheet metal profiles are also a suitable solution for cantilever racking and are usually laid across multiple bays. The production length of sheet metal profiles can reach up to 10 meters, enabling efficient coverage of larger areas.

Wire mesh gratings

For storing light to medium-weight, evenly distributed loads or cardboard packaging, we can offer lightweight wire mesh gratings. These are suitable for both cantilever racking and pallet racking.
