Production of spiral staircases
Spiral staircases are used as auxiliary staircases, whose advantage is their small floor plan area. The staircases are supplied as a modular system.
The Lichtgitter range includes staircases in two versions:

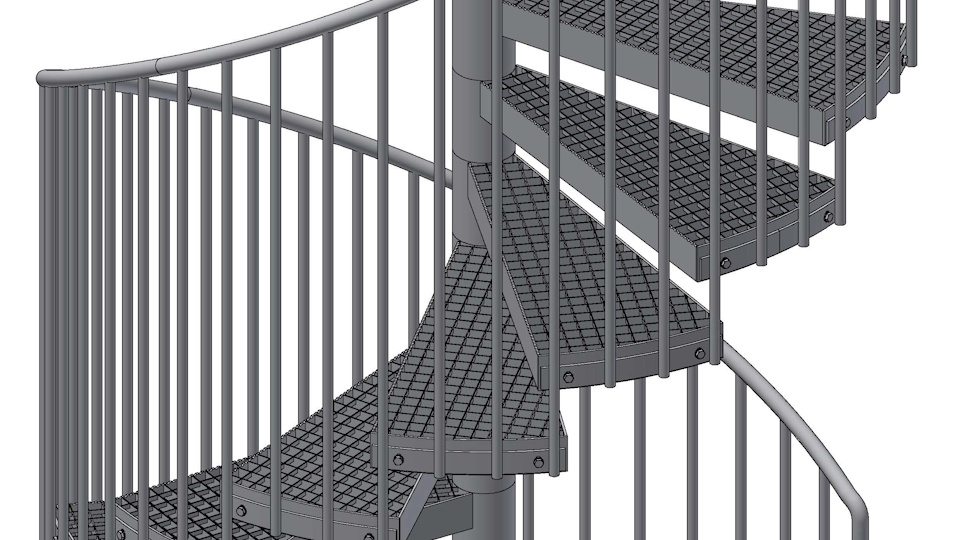

- “LG Special” staircase

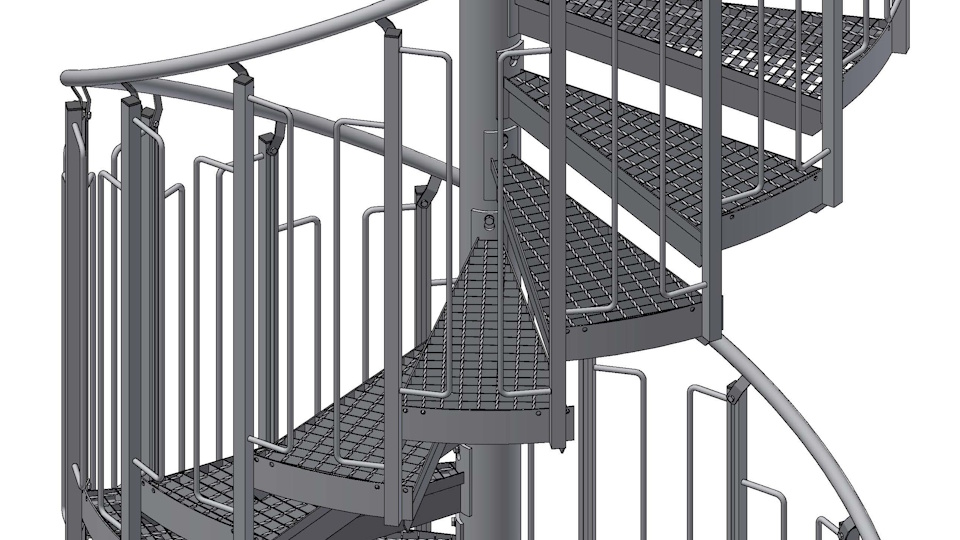

- “LG Standard” staircase
Both types are characterized by easy installation carried out according to the supplied technical documentation.
The staircase is designed for a uniformly distributed load of 3.0 kN/m2, or for a concentrated load of 2.0 kN applied to a load area of 100×100 mm, located at the nosing edge, 100 mm from the outer edge of the stair tread.
Staircase structural material:
- steel S 235 JR
Surface finish of staircases:
- hot-dip galvanizing according to ČSN EN ISO 1461

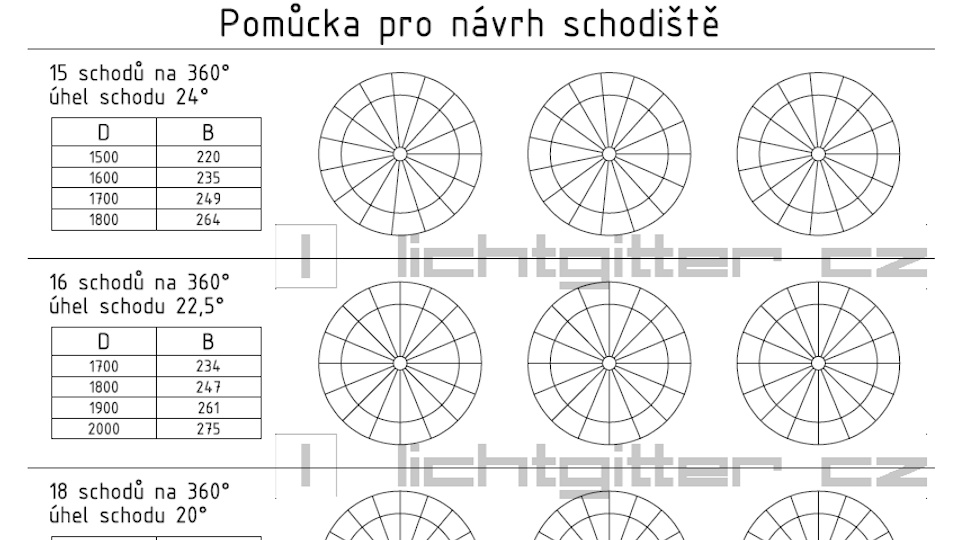

Data specification for spiral staircases
| Staircase type (D) | “LG Standard” “LG Special” | |
| Staircase diameter (D) | …. mm | |
| Total staircase height (H) | …. mm | |
| Rise (s) | …. mm | |
| Railing height (Hz) | …. mm | |
| Number of stair treads | …. pcs | |
| Landing dimension | …. mm | …. pcs |
| Intermediate landing dimension | …. mm | …. pcs |
| Height rough – finished floor (B) | …. mm | |
| Grating type | …. | |
